Hey all,

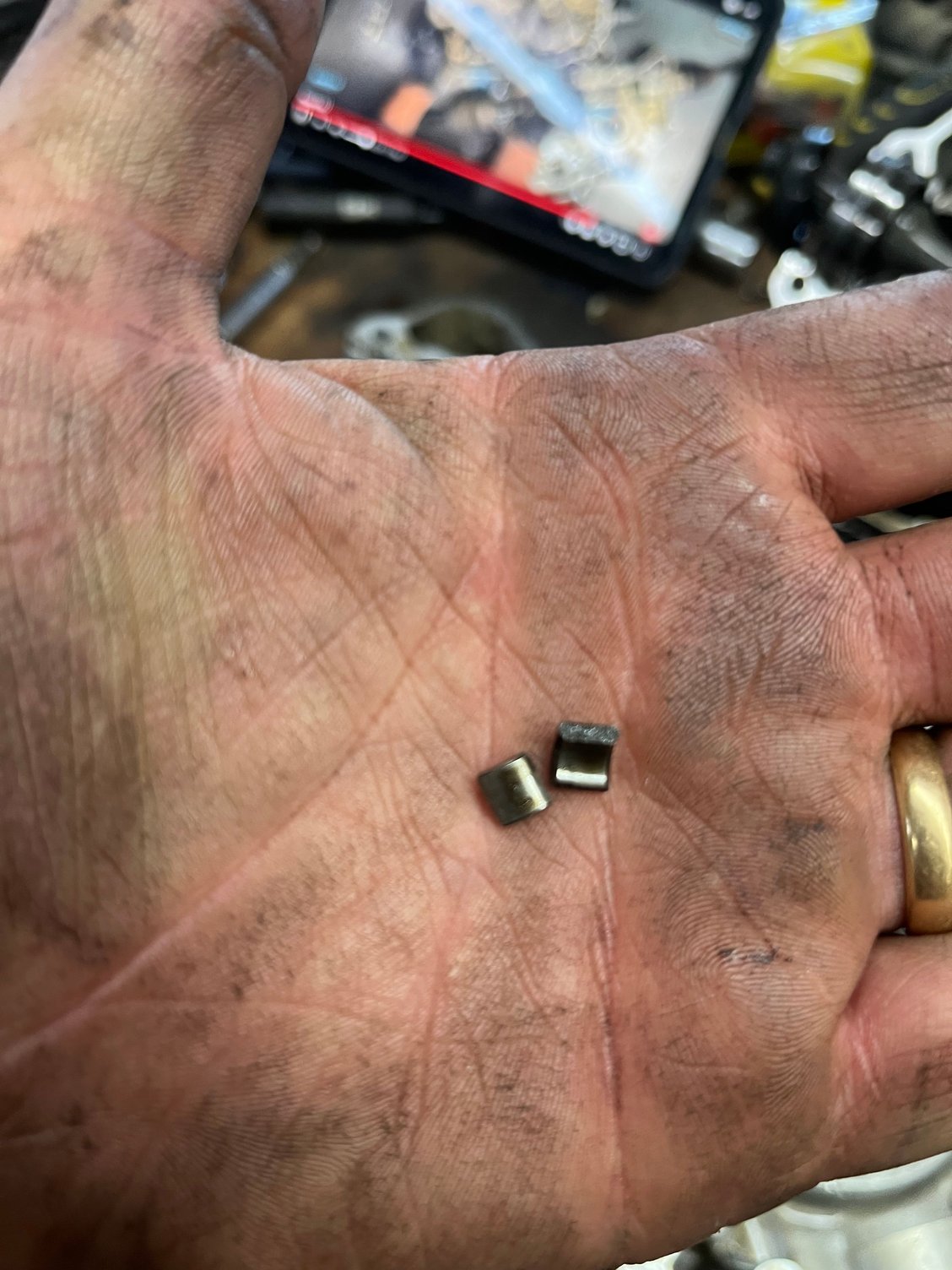

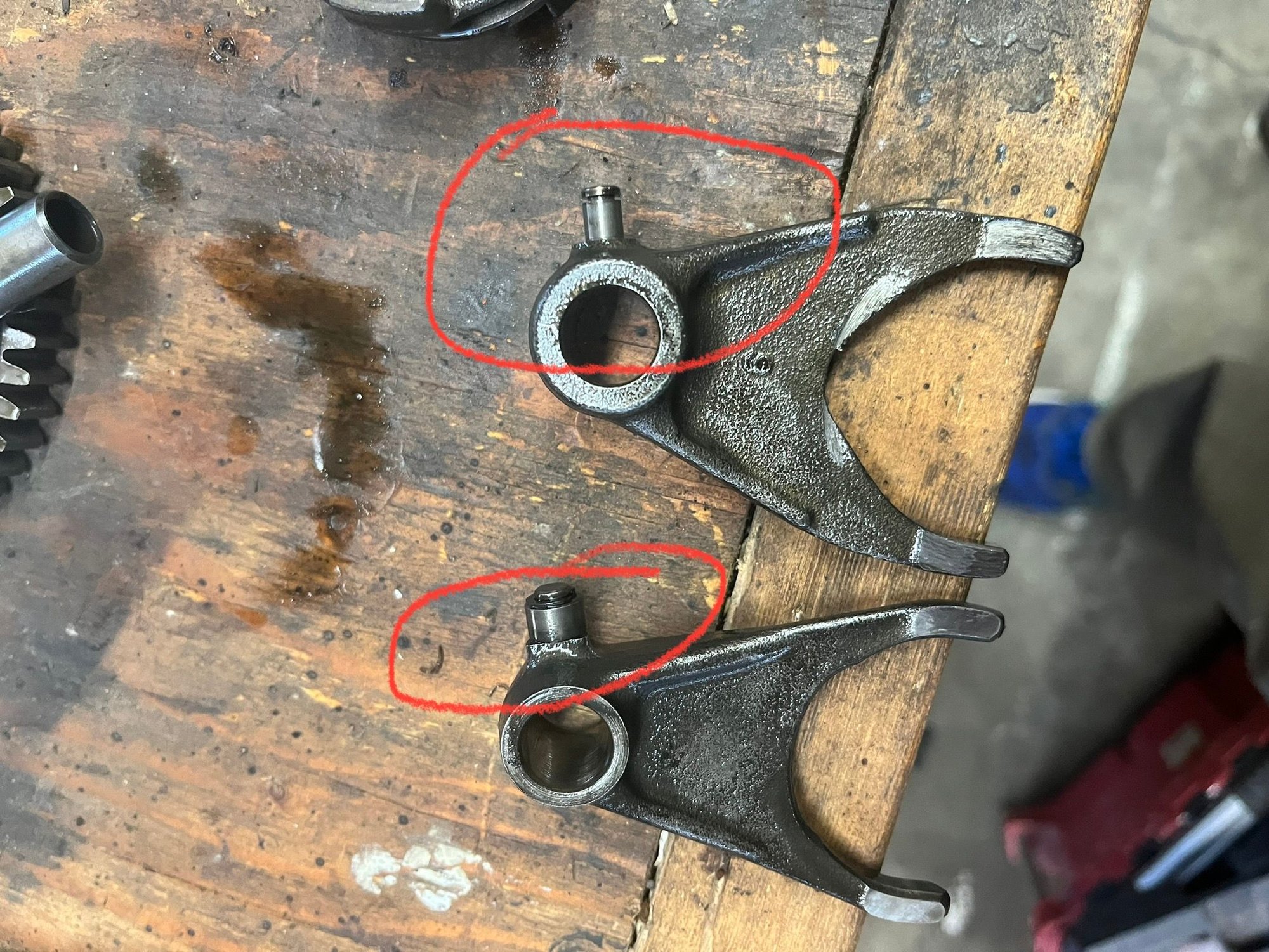

I’m having a problem trying to solve why my shift fork roller keeps breaking. I have a 2009 Suzuki King Quad 500 and now, for the second time, one of the shift fork rollers has broken and was causing some transfer issues. Again, this is the second time this has happened. I can’t figure out why this would be a recurring problem. It happened about 4 years ago. Do the forks rattle in the case enough to eventually break? The quad doesn’t get a ton of hard use. Yard work and snow removal in the winter. I thought it may be because I’ve been pushing snow in high range 4x4 but would that break a roller?

I would sure appreciate any help.

Thanks



Ray from SK
