Default 1973 TS125 Where does Green/White Coil Wire go?

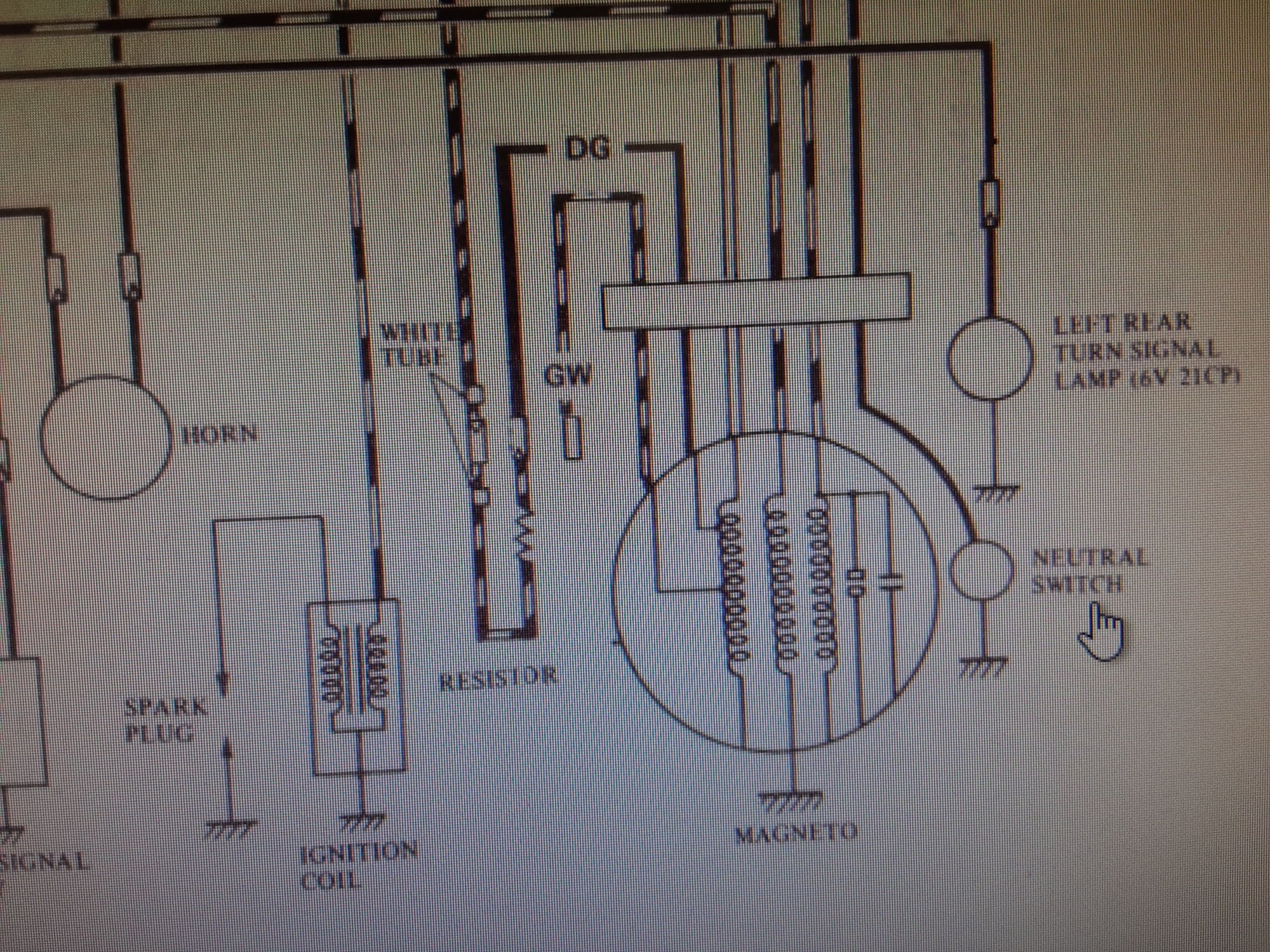

I have a 1973 TS125 that has 5 wires coming from the Stator... They are Blue for the Neutral switch, 2 Yellow wires for charging/Lighting, the black wire for the spark coil.... and the 5th is a green (with white stripe) that just ends at a female bullet connector a few inches past the 6 way connector. Where is this supposed to go? To ground? Please help! Below is a pic of the wire, and a pic of the electrical diagram. In the diagram, its the G/W wire to the left of the magneto.
